Sunday, December 20, 2009

Big planks into small planks

... and not much else I am afraid. Big snowstorm left me shoveling for most of the day Sunday.

Pictures from last week:

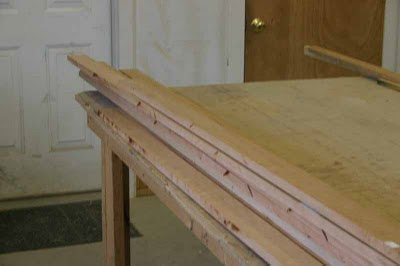

I started with some cherry that I took to a friend's shop.

The boards were cut into thinner strips - 2.5 inches - a dimension chosen for roughly the visual effect I was looking for but more importantly, maximizing the stock we had to work with.

The shiplaps and beading were cut with a combination of routers and tablesaws. It took some trial and error to figure out the best way. We spent more time on the project than we expected. A nice router table and $150 router bit would have made the the cut on the first pass. We didn't have that. It wasn't too bad though.

Yesterday, with the storm forecasted I spent some time tightening down the tarp which had settled in and loosened a slight amount in the past few weeks. We have had several days of 50+ mph gusts so I wasn't surprised. The staking system is working well and the structure isn't moving anywhere and looks good.

After that I went to work on the cabin sole bamboo plywood. It is taking a lot LOT longer than I expected to get the right shape for the sole. The problem is that the angle between the hull and sole varies widely from near vertical to over 60 degrees. Making it that much more tricky, the curves are not anywhere near fair and are instead 'lumpy and bumpy and wavy'- both the outer curves of the sole and the angle between the hull and sole are highly irregular. With the bamboo plywood sole 3/4 inch thick I am removing a lot of material through trial and error. I have about eight hours of hand planing into the project. I am real close now but I still have a bit more fussing to do. I would have a few pictures to show what I am talking about but I left my camera in the car and in the 20 degree temperatures the camera battery quickly went dead. Inside the boat with a small electric heater going its about 60 degrees - a benefit of an insulated hull. I will try and get some pictures next weekend.

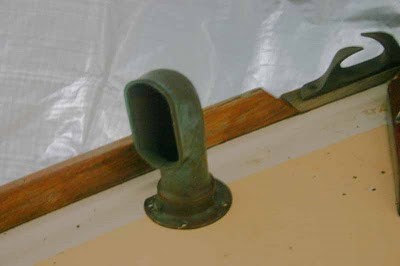

In other news, I made a bid on Ebay as a lark for a bronze cowl vent.

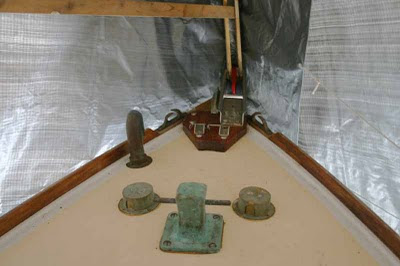

These things usually command a lot of money but this time I got lucky and won the bidding for $66. Its a bit smaller than I thought but a very well made and hefty chunk of bronze. I quite like it. I am not sure where to put it though. I know I need something to draw in/out air from the anchor locker which has clear air flow to the bilge and aft cockpit area. I am not sure this particular cowl is the ticket. It seems too small but then again it is really a small boat so maybe it will work. I know that no ventilation makes the insides pretty moldy and stale and it could be a long expensive wait for something bigger.

and that's it.

The next posting will undoubtedly be after the holiday so Merry Christmas everyone!
