Sunday, July 18, 2010

Deck progress

Sorry, no new pictures. I had planned on working both days this weekend but Sunday had other plans for me. I left the camera at home Saturday thinking the intermediate pictures would be rather dull and the final pictures (might) be more interesting. Since there was no Sunday work, there are no pictures.

On Saturday I drilled through the holes I had epoxy filled last week to the final dimensions. Then I was able to insert a known length bolt into the holes and determine the hardware I needed to install the stanchion bases, pulpits, jib sheet tracks and forward deck cowl.

I noticed a problem for the first time with jib tracks. Well two actually but one is very minor. The minor issue was that after drilling out the end holes for the jib tracks and pinning the tracks in place loosely with bolts (so that I could use the tracks as templates for the intermediate holes) I realized that the aluminum tracks bend quite easily and I *could* have bent the tracks to follow the outside curve of the decks. That would have looked a bit nicer than the straight tracks I set up for. I wasn't going to correct the minor issue but next time I would probably bend the track. Just for a slight visual improvement.

The more important issue was the lifeline set up. In my head, I was going to install a support brace for the aft stanchion so I could attach a fixed lifeline to the forward end under tension, and install a short section of removable lifeline aft of the aft stanchion - between the stanchion and the stern pulpit- for easy boarding. The only purpose was so I could removed the lifeline for boarding and not have the whole lifeline sag down. That has always been my plan. However, now that I have the jib tracks being installed I realize that the support brace needs to attach to the deck right where the track is. I can't run the support brace aft because 1.) It wouldn't be as strong. 2.) it would look funny 3.) aft of the stanchion would put the brace right over the big deck drain. There just isn't any room.

So maybe I will let the lifeline sag or maybe I will attach some sort of crimp fitting on by the stanchion tube to hold the lifeline up. The crimp won't be as strong or as visually clean but the lifeline will only be disconnected when the boat is at rest anyway when the lifelines are not so critical to have.

As some fellow boat restorers are fond of saying 'Damned because it is all connected'. Everything you do effects everything else in a myriad of ways that you cannot possibly imagine before you start the project. The challenge keeps it fun I guess.

Once I figured out my hardware needs I put in an order with They are pretty good with the random small quantities I need.

Other than that, I sanded hull alongside the cabin sole in the area between the sole and the vertical cabinet panels. Another fellow boat restorer mentioned to me privately that filling and smoothing the hull sections would have been much easier before I had the sole installed. He learned that the hard way. I guess now I have too. Next time I will fill and smooth the hull before installing the sole. I managed to get it done but it took a lot more care and time than it needed to.

I was also going to fill in around the cabin sole hatch covers with another application of thickened epoxy but I decided to hold off and see if some foam tape might work well there. The tape would add the little height I need and would soften the contact area between the sole and hatch. The tape might also depress over time leaving the hatch cover slightly lower than the sole. I might try it and see how it works. I can always build up the lip that the hatch lids sit on later.

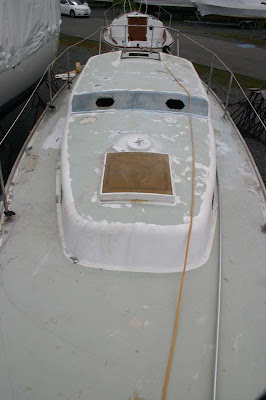

Sorry about no pictures. How about I post a few old picturs to remember how far the project has come and not always be thinking how far it has to go...
